Weather Data Source and Apple Scab DSS Model Output – Does it Make a Difference?

 Jon Clements (UMass Extension) and Daniel Cooley (Stockbridge School of Agriculture)

Weather data source, the location of a station, and DSS each make a difference in numbers of fungicide applications to control primary apple scab. So why the difference? Is the weather data different? Probably. Are the models interpreting the data differently? Probably. So it’s a combination of both? Likely.

In the Northeast it is not possible to produce apples commercially without timely fungicide sprays to control apple scab. Decision Support System (DSS) models based on weather data allow more targeted and potentially better scab control with fewer fungicide applications than a calendar spray schedule during the primary phase of apple scab infection. But does the source of weather data input or the DSS make a difference in predicting infection periods? To answer that question, we compared weather data collected in 2020 from several weather stations and a virtual weather data source at the UMass Orchard in Belchertown, MA.

Weather data was collected from four on-site weather stations at the UMass Orchard in Belchertown, MA. Two stations are situated close to one another, and the other two farther apart, as shown in Table 1. Weather stations included two RX3000 and one U30 weather station from Onset Computer Corporation (, and one Rainwise ( weather station. All collect temperature, wetness, and precipitation data, requisites to run the primary apple scab infection model on the Network for Environment and Weather Applications (NEWA). The NEWA apple scab model is based on Mills Table infection events with modification. We also looked at one “virtual” weather data service ( feeding weather data into RIMpro (, a cloud-based DSS running its own (proprietary) version of the apple scab infection model. RIMpro was also run using data from the Rainwise weather station.

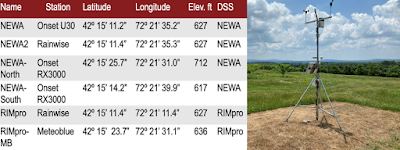

Table 1 - Name (DSS used in this blog post), Station hardware, Lat./Lon., Elevation, and DSS of weather stations or virtual weather data source at the UMass Orchard, Belchertown, MA. (Click on Table to see larger.)

Examples of how and when infection periods for NEWA and RIMpro were determined are shown in in Figures 1. and 2. respectively. Then, all apple scab primary infection periods evaluated by each system is graphically illustrated in Figure 3. Red color-filled table cells with an ‘x’ in them are scab infection periods (by day). Yellow color-filled cells are presumed fungicide spray infection prevention events that are based on a few simple rules: a preventive fungicide spray before every infection event; a post-infection (kickback) spray during longer infection periods and/or during the accelerated phase of ascospore maturity/development; and for RIMpro, following the previous two rules, but only when the RIM infection value exceeded 100 (daily RIM value indicated by the number). From Figure 3., all primary infection periods from green tip to 100% ascospore maturity and final release of spores, and proposed spray events were counted for each Decision Support System and are shown in Table 2.

Figure 1 - Example of how apple scab infection periods are counted in NEWA. (Click on Figure to see larger.)

Figure 2 - Example of how apple scab infection periods are counted in NEWA.

Figure 3 - Apple scab infections (in red) predicted by DSS and suggested spray events (in yellow) for the primary appe scab season beginning 1-Apr iland ending 30-June. (Click on Figure to see larger.)

Table 2 - From Figure 3, total number of Infection Periods and Proposed Sprays during the primary apple scab season by DSS (Name).

Primary apple scab infection periods ranged from three infection events for RIMpro up to ten infections for NEWA (Table 2). Spray events followed similarly, ranging from three fungicide sprays to twelve sprays. Thus, the number of infection periods and proposed fungicide sprays vary significantly, from three to ten and three to twelve respectively. There are several sources of variability that could result in such different DSS outputs, including: virtual vs. hardware weather station (including manufacturer), location in the orchard, and different DSS interpretations of the scab model, particularly NEWA vs. RIMpro. Several assumption, particularly when it comes to spray events, have been made too, which could be argued. But these differences are concerning and could result in a grower taking different actions, and experiencing different outcomes, like getting scab, depending on how weather data is collected and what DSS is used. Therefore, there is a need for further field testing using fungicide applications applied according to each Decision Support System.

For further reading:
Clements, J., and D. Cooley. 2013. A Comparison of Two Sources of Environmental Data and Three Model Outputs for Primary Apple Scab in 2012 at the UMass Cold Spring Orchard. Fruit Notes, Volume 78, Spring 2013.

Garofalo, E., A. Tuttle, J. Clements, and D. Cooley. 2016. Discrepancies Between Direct Observations of Apple Scab Ascopore Maturation and Disease Model Forecasts in the 2014 and 2015 Growing Seasons. Fruit Notes, Volume 81, Spring, 2016.

Weather data in, DSS out for apple scab infection period model -- does it make a difference? (YouTube video.) A comparison of four on-site weather stations and one virtual weather service as data sources in 2020 for the apple scab infection period model in two Decision Support Systems at the UMass Orchard in Belchertown, MA. A presentation at the 62nd Annual New England, New York, and Canada Pest Management Conference for Extension, research, and consultants, October 19, 2020 via Zoom. ©2020 Jon Clements and the UMass Fruit Advisor, Or play here...
